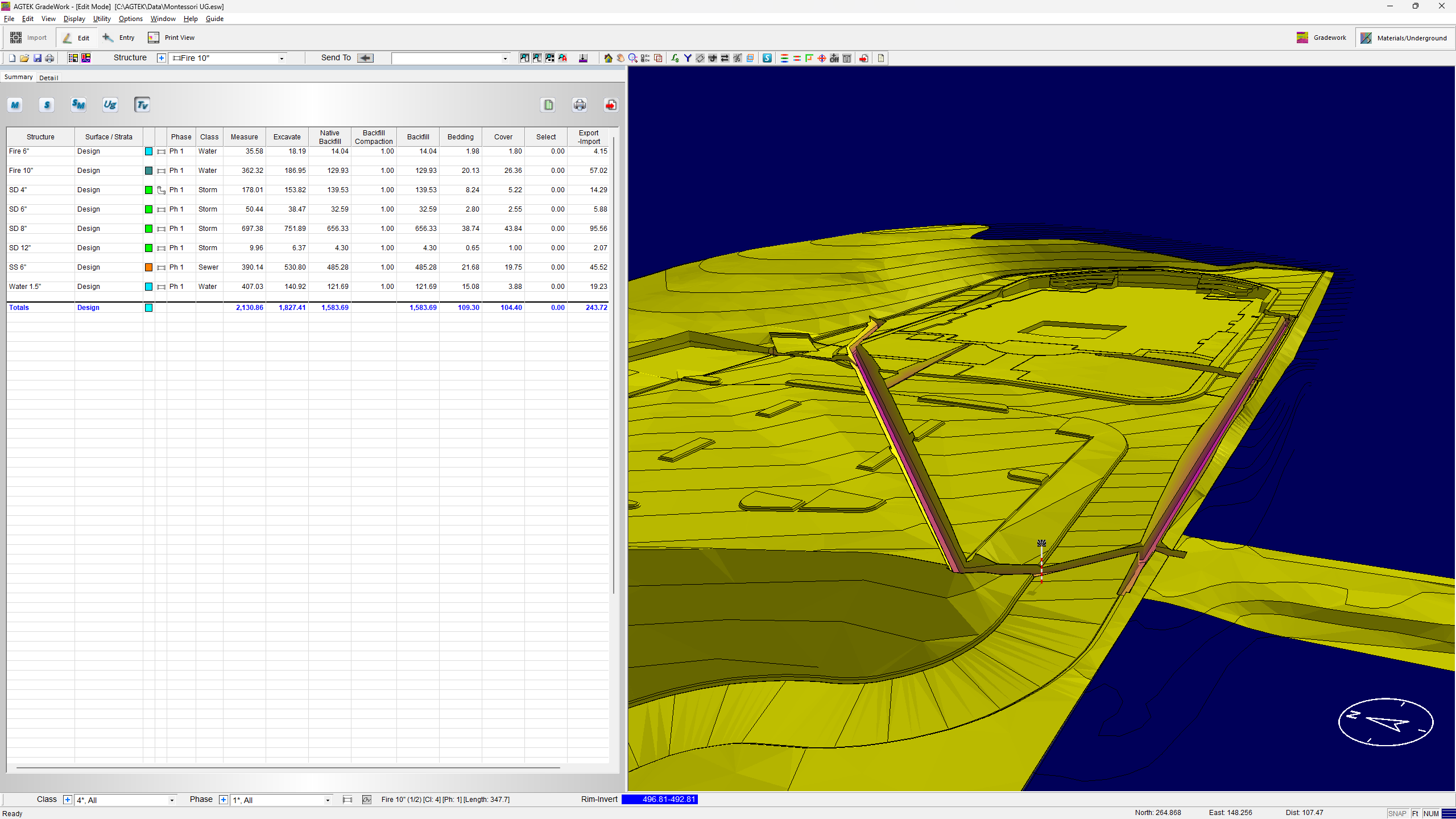

The Apply Trench utility is used
to create a 3D surface of the Underground Pipe and Lateral structures.
The trench will use the parameters established when creating the structures.
You may select specific runs of pipe or choose All Displayed Pipes.

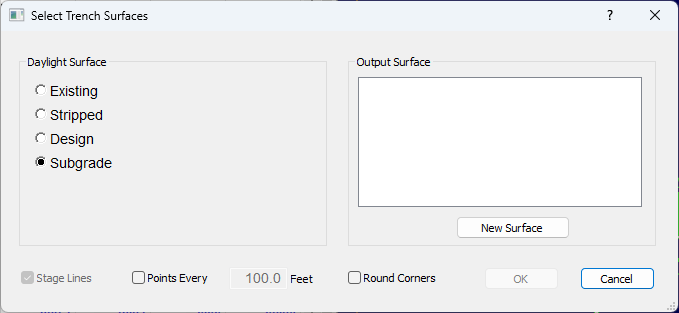

The Select Trench Surface window is used to select the desired surfaces for daylighting and outputting the trench surface.
Daylight Surfaces |
Defines the surfaces to be used to daylight the trench template |
Output Surface |
Defines the surface the data lines will be applied. |
New Surface |
Used to create a new surface for the applied trenches |
Stage Lines |
This option will stage the data into the Output Surface. This option may not be changed |
Points Every |
Check this box to add points at a selected distance |
Feet/Meters |
Enter the desired distance between points in feet or meters |
OK |
Click to accept all changes. |
Cancel |
Cancels applying the trench |
If New Surface is selected, enter the name and color for the new surface.
Click OK and the trenches will be applied and the surface will be created.
