The Edit Codes window is used to define the cost codes used for third party estimating software. You may enter codes by structure or material.

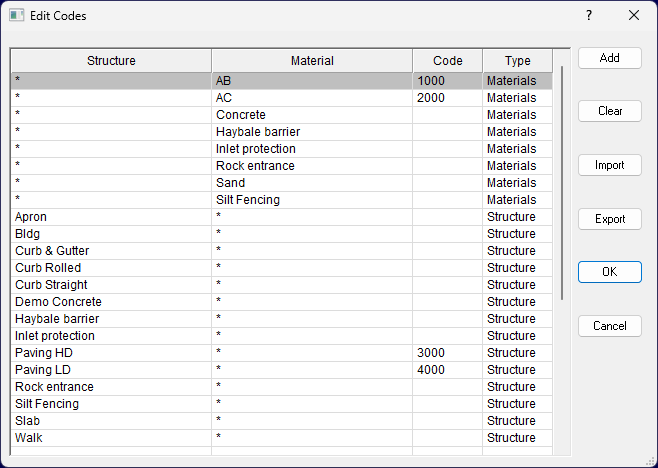

Select Edit > Codes to access the Edit Codes window. Click Add to add a new code. Select the structure from the list or select Wildcard if the material code applies to all structures. Select the material or select Wildcard if the structure code applies to all materials. Enter the Code. Click OK to Accept all changes.
Structure |
Name of the structure to be added to the code table. Enter Wildcard if the structures applies to all materials |
Material |
Name of the material to be added to the code table. Enter Wildcard if the material applies to all structures |
Code |
Enter the Code to be added to the code list |
Type |
Defines the type of code |
Add |
Used to add a new code |
Clear |
Used to clear the code table |
Import |
Used to import a code table from another file |
Export |
Used to export the code table to another file |
| OK | Click to accept any changes. |
Cancel |
Cancels any changes made. |

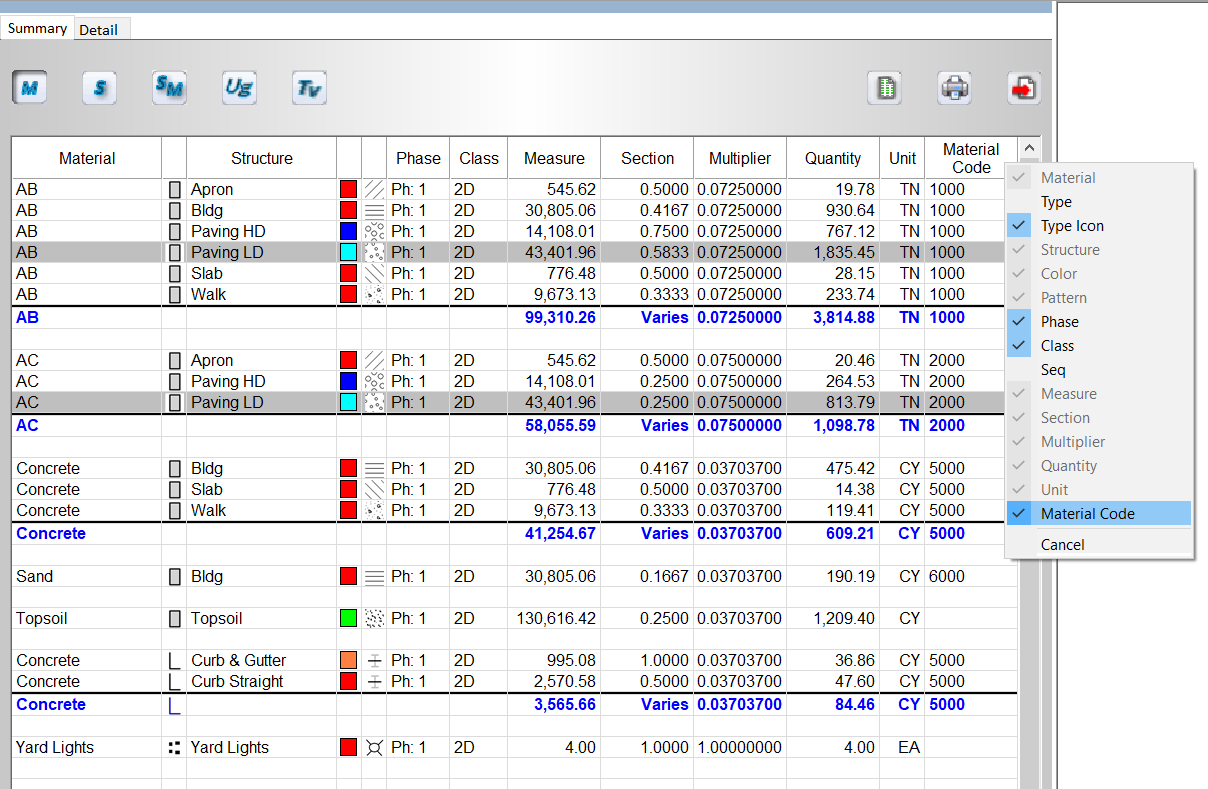

To display the cost code on the Materials or Structures Report, right click on the header row and check Material or Structure Code.
