The Edit Verticals window is used to define the dimensions and type of Vertical structures. These dimensions are used solely for the 3D graphic representation of the Vertical structures. They have no effect on quantities.
Select Edit > Verticals to access the Edit Verticals window. Click Add to add a new Vertical structure to the Verticals database. Click OK to Accept all changes.
Name |
Name of the Vertical structure to be added |
Class |
Defines the Class of the Vertical structure |
Type |
Define the type of the Vertical structure. Round or Rectangular |
Width |
Defines the width of the Vertical structure |
Length |
Defines the length of the Vertical structure |
Base |
Defines the depth of the base of the Vertical structure |
Add |
Used to add a new Vertical |
Import |
Used to import the Verticals database from a CSV file |
Export |
Used to export the Verticals database to a CSV file |
| OK | Click to accept any changes. |
Cancel |
Cancels any changes made. |

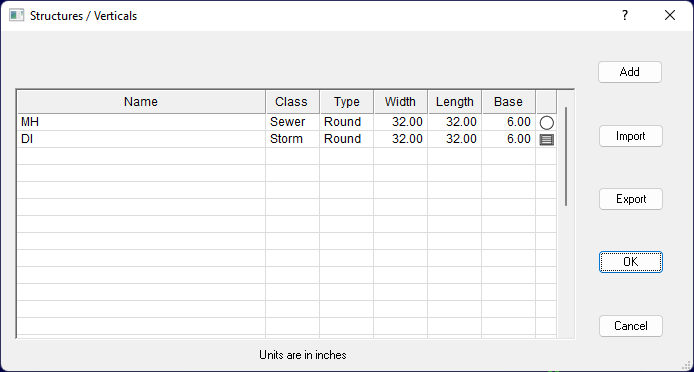

The Verticals list will display when adding a new Vertical structure..
