The Image Selection window is used to manage the PDF and TIF background images. The image borders may renamed and the sheets may be inserted.
Video Links: Image Selection

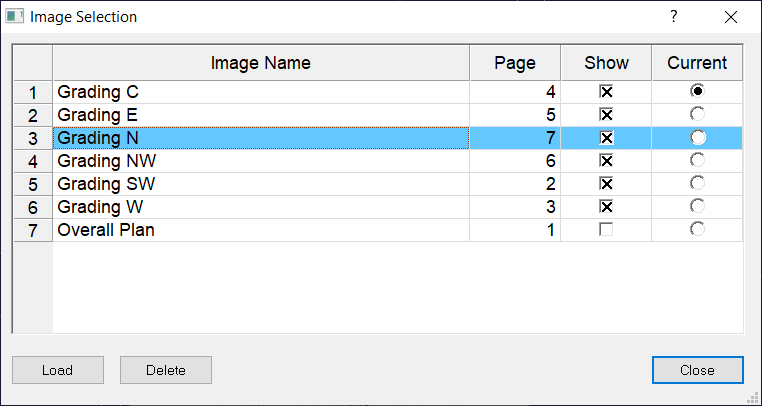

The Image Selection window displays when clicking the Image Selection button on the toolbar. The Image Selection window may be moved to a different screen.
Image Name |
The Image Name will default to the name of the PDF file. The Image Name may be edited in order to sort the plans more efficiently.. |
Page |
This number is the original page number from the PDF file. |
Show |
When checked, the Background Image will be displayed on the screen. Uncheck the box to hide the border of sheets not currently being used. |
Current |
Click the Current button beside the Image Name to insert the sheet. |
Load |
Select the desired sheet and click the Load button to insert the sheet. |
Delete |
Select the desired sheet and click the Delete button to delete the Image Background from the file. |
Close |
Close the Image Selection window. |
