Manage Export Layers

Video Links: Manage Export Layers

Used to manage the line color when exporting the data to a CAD file, or to a Topcon LN3 file.

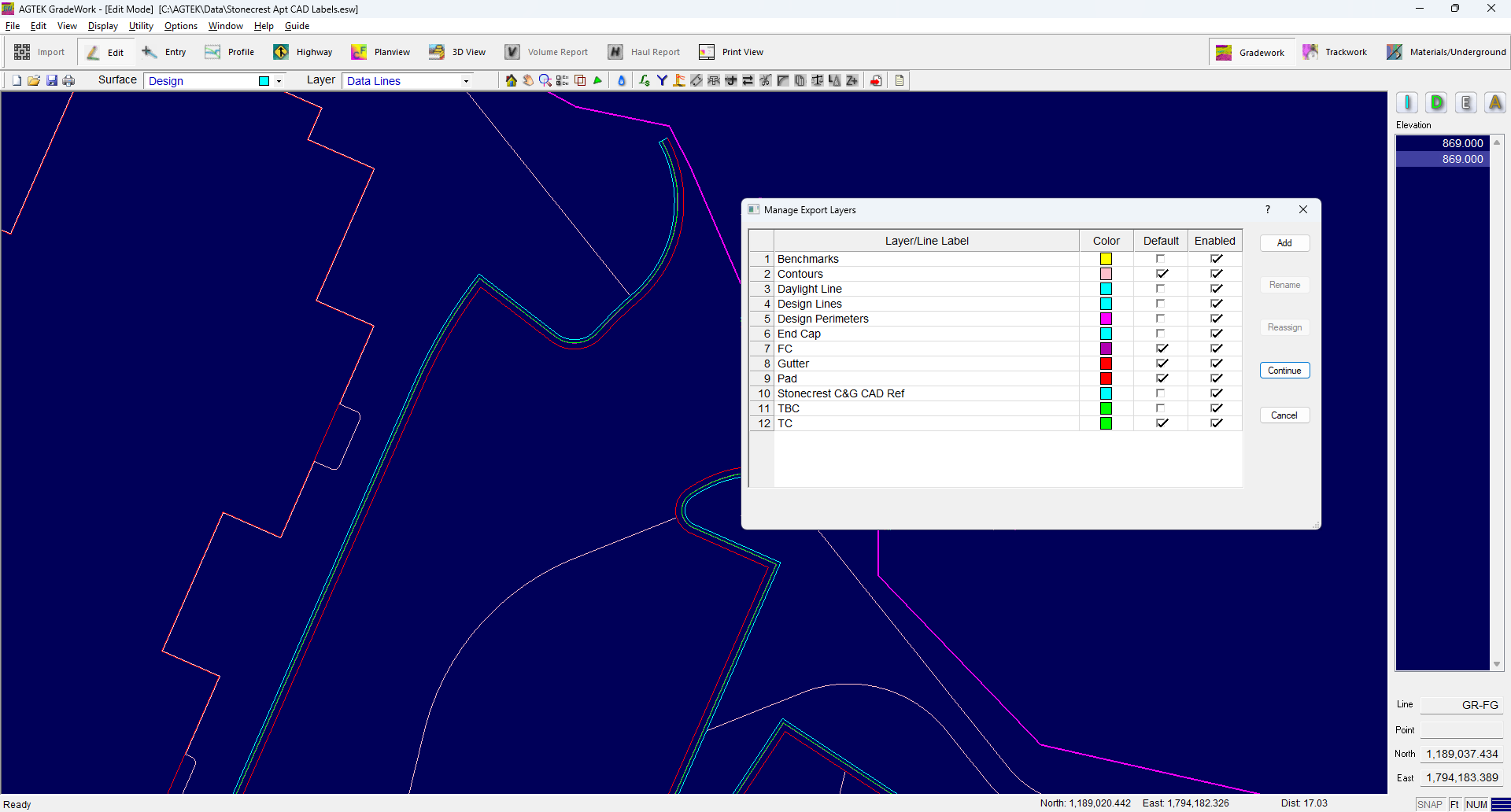

The Manage Export Layers window displays when exporting to DWG, DXF or LN3.  Double-click on the color to change the color.  Check Default if you want to use this color for the assigned layer name for future projects. Check Enabled for the layers you want to export to the file. You may also add new labels or reassign labels in this window.
