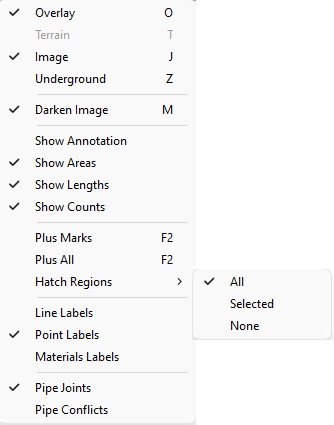

The Hatch Regions option is located under the Display Menu in Edit and Entry modes. To view the Hatch Pattern select Hatch Region from the Display Menu. Check All to display the Hatch Pattern on all area structures. Check Selected to the Hatch Pattern on the selected structure. Check None to turn off the Hatch Pattern on all structures. A check next to the command indicates that the option is turned on.
The Hatch Regions command toggles On/Off the display of a hatch pattern. The keyboard shortcut is Alt-F.
Below is an example of Hatch Regions for overlapping and non-overlapping areas/regions
All Hatch Regions Selected |
|

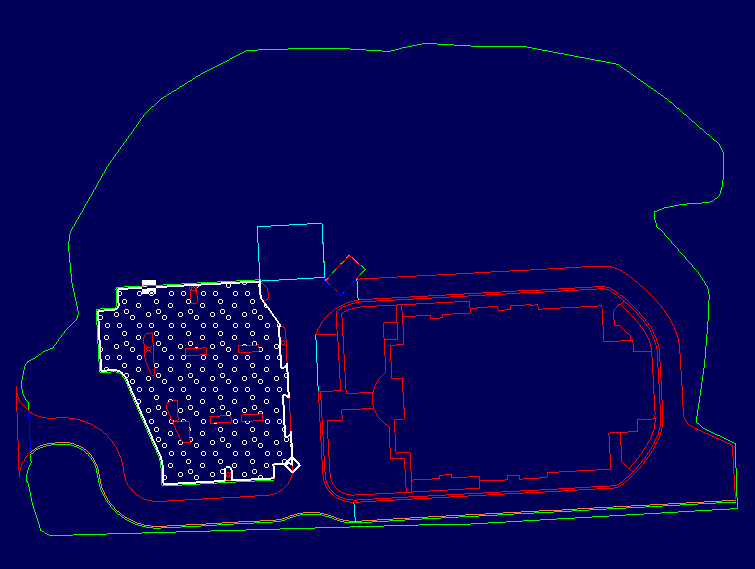

Selected Hatch Regions selected |
|
|
|
