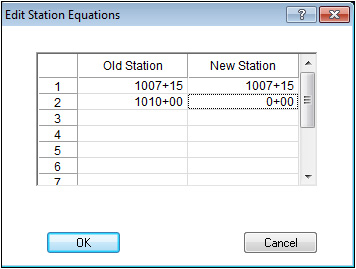

This window displays when adding or editing station equations to a highway alignment. The beginning station will display in row 1.
Enter the first station equation in row 2. Enter the back station for the Old Station and the ahead station for the New Station. Station equations may go forward or backward, however if the equation goes backwards, stations may not overlap previously entered stations. You would need to create a new alignment if the stations overlap.
