The Template Editor may be used to create a template using typical cross section information. The template may then be applied to a chosen reference line or multiple lines, which can be used to build jobs such as roads, canals and trenches.
Video Links: Basic Template for Roadways, Templates for Trenches, Templates for Over-Excavation, Templates for Curb & Gutter

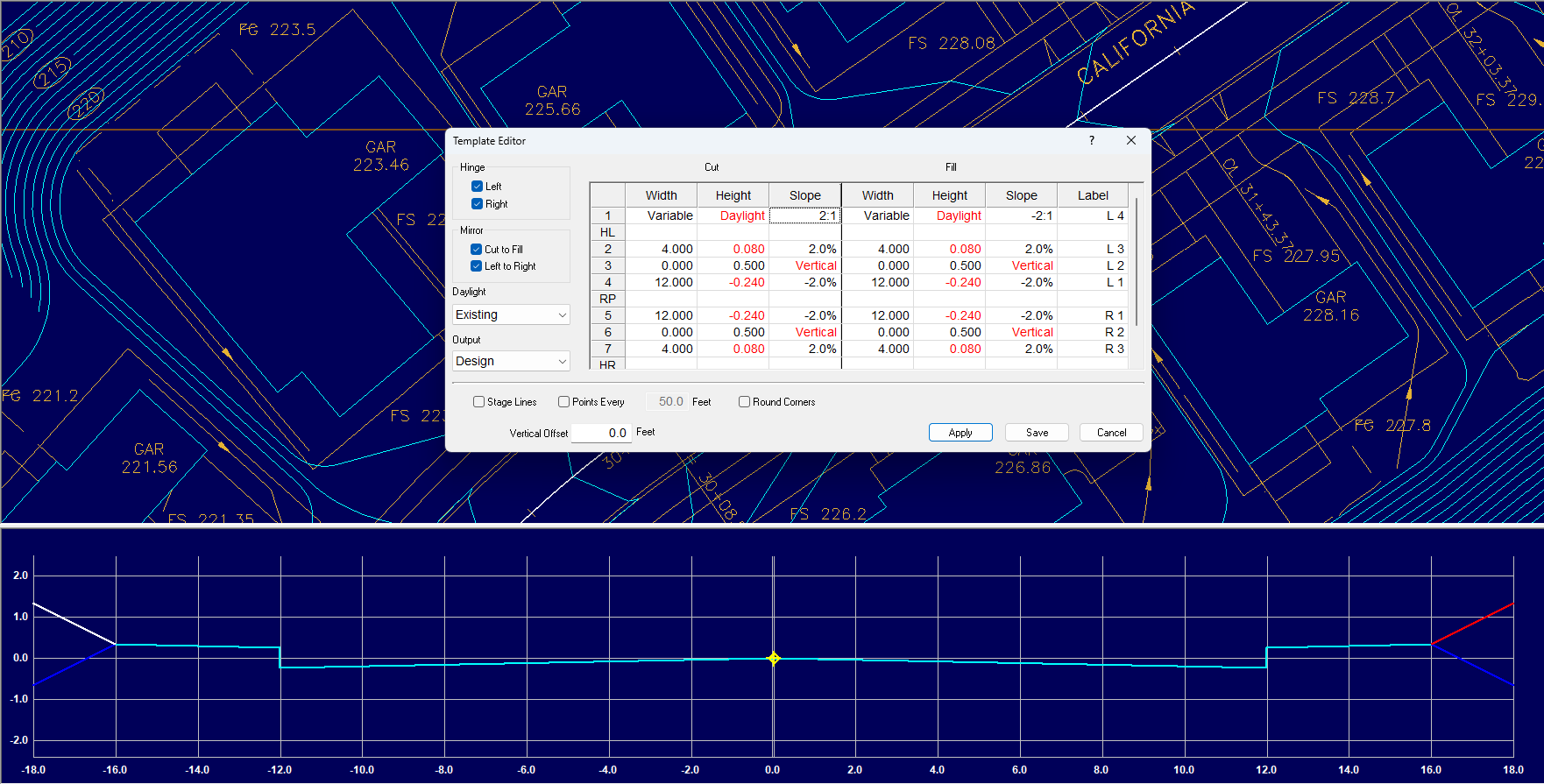

The Template Editor displays after roughly tracing a new template or opening an existing template. The window is split into two sides, Cut and Fill. This allows you to assign different parameters depending on the segment being in a cut or fill condition. The window is also split between left side and right side, based on the location of the reference point (RP). You may move the reference point by dragging the RP row to the desired position. A yellow diamond will mark the reference point on the template graphic. The currently selected segment will be highlighted in white.
Width |
Segment width. |
Height |
Segment elevation change. |
Slope |
Segment slope. Enter a negative value if the segment projects downward from the reference point. |
Label |
Segment label. Enter a label for the segment or keep the default label. |
Hinge |
Adds a hinge point to the left or right side of the template to allow the ends to be sloped to daylight. First, select the segment that will determine where to begin searching for the daylight surface. |
Mirror |
Creates a symmetrical template by entering values to match either the Cut and Fill, or the Left and Right, depending on when the checkboxes are selected. |
Daylight |
Selects the surface to be referenced when daylighting the template. |
Output |
Selects the surface to which the template is applied. Selecting "New Surface" copies the Daylight surface in a new surface, and stages the new template lines into the new surface. |
Stage Lines |
Stages lines produced by the template into the Output surface by trimming and deleting any intersecting lines within the template. |
Points Every |
When selected, enters points at the designated interval on all lines created by the template. |
Vertical Offset |
Distance, in feet, above or below the chosen reference line or lines. Enter a negative value to go below the reference. |
Round Corners |
When selected, corners will be rounded to maintain the offset distance on all points. When not selected, the corners will maintain the angle of the corner. |
Apply |
Applies the template to the chosen reference line or lines. |
Save |
Saves the template for use on future jobs. |
Cancel |
Cancels the operation. |
