Report Regions are used to break out areas for reporting purposes on the volume report. Regions are entered in Entry Mode and edited in Edit Mode.
Video Links: Editing the Fill Factor
|
|
|
|
Entry Mode |
Report Regions are entered by switching to the Report Regions layer in the Design surface or by pressing the Report Region button on the Utility Toolbar.
Before a region can be entered, the Report Region window displays prompting the user for information about the region. |
|
|
|
|
|
|
Edit Mode |
The Report Region command, located under the Edit Menu, is used to edit the information of existing Report Region. To edit a report region, select it with the Left mouse button in Edit Mode. Select Report Region from the Edit Menu, press the Edit Report Region button or simply double-click on the region to display the Report Region window. |
|
|
|
|

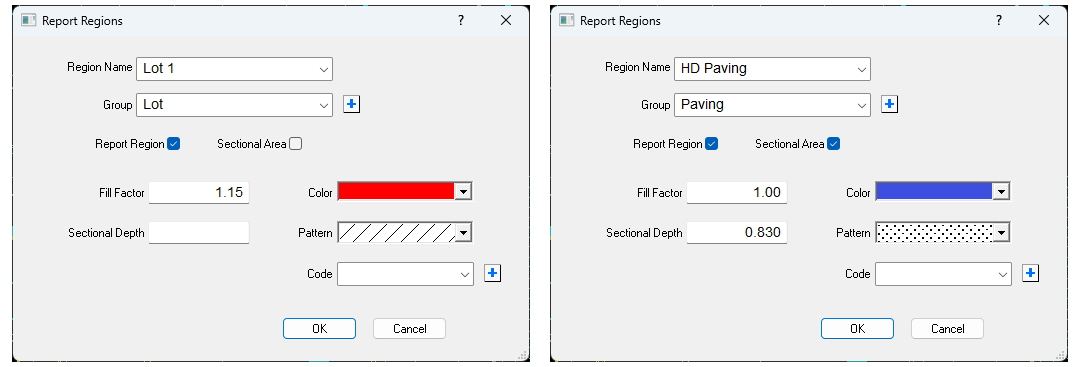

Below is an example of the Report Region window followed by a brief description.
Region Name |
Regions with the same name are totaled and regions with ascending names (i.e. Lot 1, Lot 2, etc.) are totaled individually and then subtotalled by the name "Lot". |
Report Region |
This checkbox indicates that the region will be included as part of the job totals. |
Sectional Area |
This checkbox indicates that the sectional area will be included as part of the job totals. |
Fill Factor |
Represents the compaction percentage. |
Sectional Depth |
The depth of the sectional taken from the surface of the design. A negative value enters the depth above grade. |
