Report Region Only

A Report Region can be entered in two ways: by selecting the Design surface and Report Regions layer or by using the Report Regions command.





  Using the Report Regions Command



  • Switch to Entry Mode

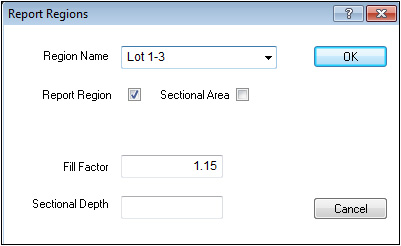

  • Press the Report Region button on the Utility Tool Bar. The Report Regions window displays.





  • Enter the Region Name, check the Report Region box and enter a Fill Factor. Press OK to continue.



  • Enter the region using the Enter button on the cursor or the Left button on the mouse. Press the Blank button or right mouse button to close the region.







Using the Layer Menu



  • In Entry Mode, switch to the Design surface and the Report Regions layer.



  • Move the arrow to the Line text box at the lower right side of the screen at the bottom on the Elevation window.



  • Click in the text box and type in the name of the report region.



  • Enter the region using the Enter button on the cursor or the Left button on the mouse. Press the Blank button or Right Mouse button to close the region.
