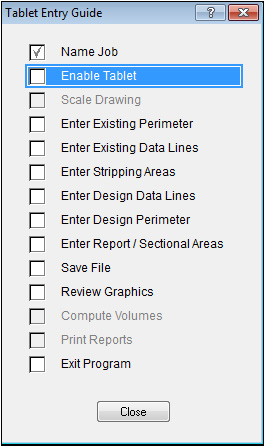

The Tablet Entry Guide is designed to assist digitized data entry. Press Guide on the menu bar and select Tablet to display the Tablet Entry Guide. Press the G key on the keyboard to activate the guide after selecting the desired guide. The suggested data entry sequence is listed from top to bottom on the list. Below is an explanation of the commands on the Data Entry Guide.
Name Job |
|
Entry of job name, builder and data. Units of measure is only available on a new job. |
|
|
|
Enable Tablet |
|
Enables the use of the digitizer for scaled data entry. |
|
|
|
Scale Drawing |
|
Used to scale the grading plan to the digitizer. |
|
|
|
Enter Existing Perimeter |
|
Switches to Entry Mode, Existing Surface, Perimeter Layer |
|
|
|
Enter Existing Data Lines |
|
Switches to Entry Mode, Existing Surface, Data Lines Layer |
|
|
|
Enter Stripping Areas |
|
Switches to Entry Mode, Existing Surface, Stripping Areas Layer |
|
|
|
Enter Design Data Lines |
|
Switches to Entry Mode, Design Surface, Data Lines Layer |
|
|
|
Enter Design Perimeter |
|
Switches to Entry Mode, Design Surface, Perimeter Layer |
|
|
|
Enter Report/Sectional Areas |
|
Switches to Entry Mode and starts the Add Report Regions command |
|
|
|
Save File |
|
Saves the current job. |
|
|
|
Review Graphics |
|
Switches to 3D View Mode |
|
|
|
Compute Volumes |
|
Calculates the volumes for the Design Perimeter and any Report Regions. |
|
|
|
|
|
|
Print Reports |
|
Switches to the Print Preview Page and send the Cut-Fill Shade Map and Volume Report to the Print Preview Page. |
|
|
|
Exit Program |
|
Exist the program. If job has changed since last save, you are prompted to save the job before exiting. |
