This command transfers the subgrade surface to the selected surface and replaces the original surface.
To Existing |
Transfers the subgrade surface to the existing surface. Stripping Regions and Sectional Areas will be converted to Annotation. Report Regions will remain as they were. If Staged Design is enabled, the existing ground will remain outside the design perimeter. |
To Design |
Transfers the subgrade surface to the design surface. Sectional Areas will be converted to Annotation. Report Regions will remain as they were. If Staged Design is enabled, the existing ground will remain outside the design perimeter. |

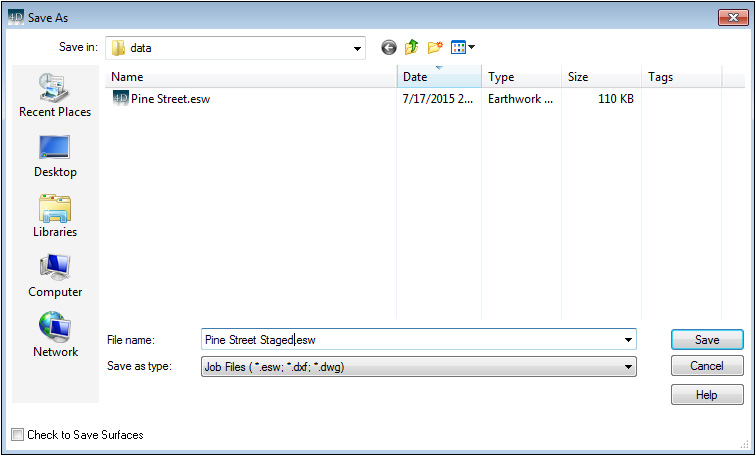

Click OK to continue. The Save As window will display.
Enter a new name for the file and click Save. The subgrade surface will be transferred to the selected surface.
