Report Regions

Report Regions are used to break out areas for reporting purposes on the volume report. Regions are entered in Entry Mode and edited in Edit Mode.





Entry Mode

Report Regions are entered by switching to the Report Regions layer in the Design surface or by pressing the Report Region button on the Utility Toolbar.

Before a region can be entered, the Report Region window displays prompting the user for information about the region.









Edit Mode

The Report Region command, located under the Edit Menu, is used to edit the information of existing Report Region. To edit a report region, select it with the Left mouse button in Edit Mode. Select Report Region from the Edit Menu, press the Edit Report Region button or simply double-click on the region to display the Report Region window.



Report Region Window

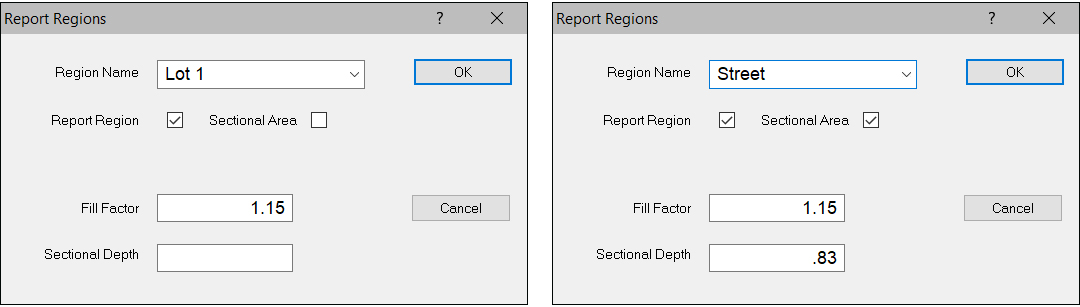

Below is an example of the Report Region window followed by a brief description.

Region Name

Regions with the same name are totaled and regions with ascending names (i.e. Lot 1, Lot 2, etc.) are totaled individually and then subtotalled by the name "Lot".

Report Region

This checkbox indicates that the region will be included as part of the job totals.

Sectional Area

This checkbox indicates that the sectional area will be included as part of the job totals.

Fill Factor

Represents the compaction percentage.

Sectional Depth

The depth of the sectional taken from the surface of the design. A negative value enters the depth above grade.
