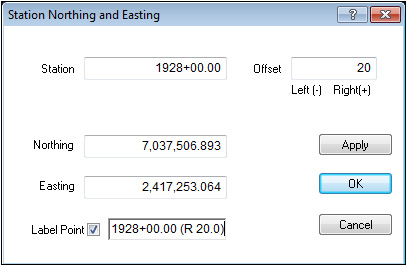

The North/East Offset window is used to enter offset points based on highway station and horizontal offsets. Horizontal cogo must be entered before creating North/East offsets.
|
Station |
Enter the station number for the desired offset point. |
|
|
|
|
Offset |
Enter the distance from the reference line to the desired offset point. Enter a negative value for points left of the reference line. |
|
|
|
|
Northing |
Northing coordinate of the offset point. |
|
|
|
|
Easting |
Easting coordinate of the offset point. |
|
|
|
|
Label Point |
Check this box if you wish to add a label to the offset point. The default label will contain the station number and offset distance.. |
|
|
|
|
Apply |
Adds the north/east offset point to the file. The points will be added to the Design Annotation layer. |
|
|
|
|
OK |
Close the Station Northing and Easting window to accept the offset points. |
|
|
|
|
Cancel |
Close the Station Northing and Easting window and clear any offset points added during the session. |
