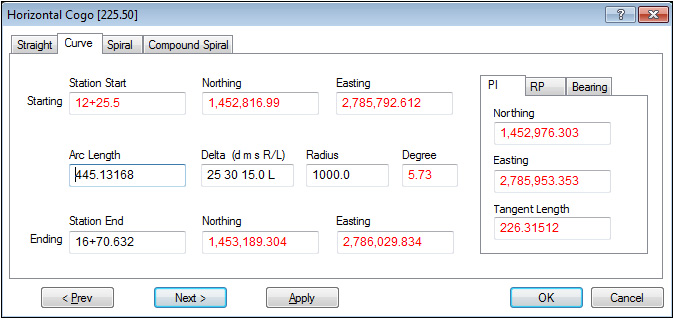

The Horizontal Cogo Editor is used to enter the horizontal geometry There are 4 types of horizontal cogo entries. Straight, Curve, Spiral, and Compound Spiral. Entered values display in black. Interpolated values display in red.
Station Start |
The station number at the beginning of the current curve segment. |
|
|
Northing |
The northing coordinate of the beginning of the current curve segment. |
|
|
Easting |
The easting coordinate of the beginning of the current curve segment. |
|
|
Arc Length |
Length of the current curve segment. |
|
|
Delta (d m s L/R) |
Delta (change of direction) of the current curve segment in degrees minutes and seconds. |
|
|
Radius |
Radius of the current main curve segment. |
|
|
Degree |
Degree of curvature of the current curve segment. |
|
|
Station End |
The station number of the end of the current curve segment. |
|
|
Northing |
The northing coordinate of the end of the current curve segment. |
|
|
Easting |
The easting coordinate of the end of the current curve segment. |
|
|
PI |
The northing, easting coordinates and tangent length to the point of intersection of the curve segment. |
|
|
RP |
The northing and easting coordinates of the radius point of the curve segment. |
|
|
Bearing |
The bearing (direction) of the segment entering the curve. |
