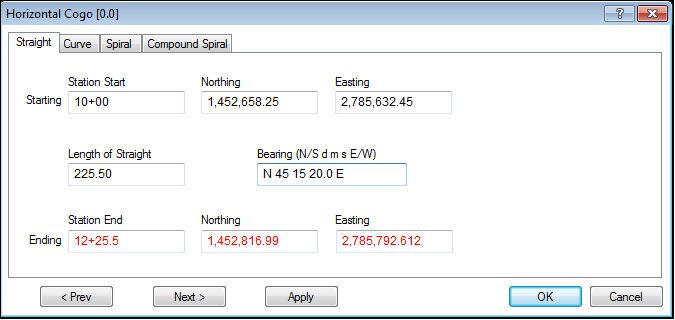

The Horizontal Cogo Editor is used to enter the horizontal geometry There are 4 types of horizontal cogo entries. Straight, Curve, Spiral, and Compound Spiral. Entered values display in black. Interpolated values display in red.
Station Start |
The station number at the beginning of the current straight segment. |
|
|
Northing |
The northing coordinate of the beginning of the current straight segment. |
|
|
Easting |
The easting coordinate of the beginning of the current straight segment. |
|
|
Length of Straight |
Length of the current straight segment. |
|
|
Bearing (N/S d m s E/W) |
Bearing (direction) of the current straight segment in degrees, minutes and seconds. |
|
|
Station End |
The station number of the end of the current straight segment. |
|
|
Northing |
The northing coordinate of the end of the current straight segment. |
|
|
Easting |
he easting coordinate of the end of the current straight segment. |
